Quick answer: Getting structured cabling in Vapi right means separating data cables from heavy power lines, choosing Cat6 or Cat6A copper for distances under 90 metres, and labelling both ends of every run at the patch panel. Avoiding sloppy tray routes, unlabelled wires, and overheating server racks prevents costly network drops later.
Walk into a ten-year-old plant office in Vapi GIDC or Chala, and you will likely see a familiar sight behind the main desk: a tangled bundle of loose blue cables hanging off an unmounted network switch, draped over power strip cords. It works fine for two years—until a single PC drops off the local network, and an engineer spends five hours tracing wires behind filing cabinets to find a broken tab.

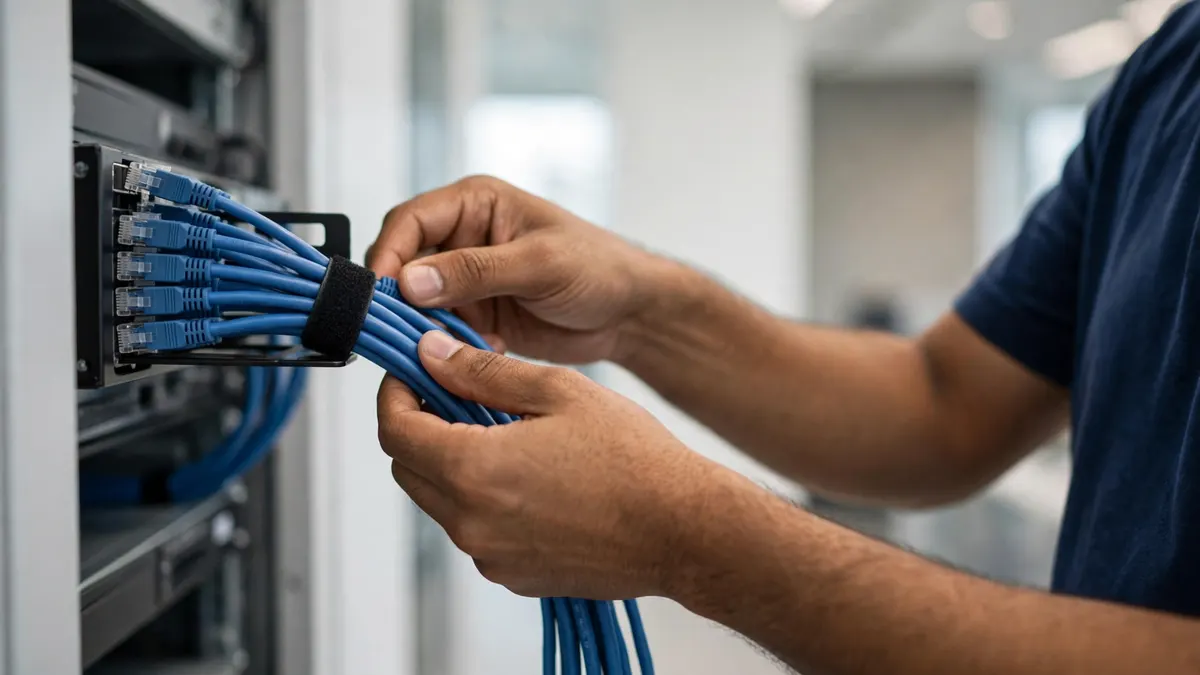

Structured cabling replaces that guesswork with a clean, standardized wiring layout. Every computer, IP camera, and biometric reader connects back to a labelled patch panel inside a central rack. Getting structured cabling in Vapi installed properly from day one saves your business hours of unproductive troubleshooting every time a line fails.
Why Network Cabling Fails Early in Vapi Industrial Belts
In a standard air-conditioned office in Surat or Mumbai, network cables rarely deal with harsh physical stresses. Vapi’s industrial environment is different.
Between high humidity near river corridors, chemical fumes in GIDC phase areas, and heavy electrical loads from motor drives, standard indoor patch cords deteriorate fast when thrown loosely across false ceilings. Understanding how local factory conditions affect copper wiring helps you build a network that lasts a decade.
Choosing Cat6 vs Cat6A vs Fibre for Factory Layouts
For smaller offices where the distance from the rack to the farthest desk stays under 90 metres, standard Cat6 copper cabling handles Gigabit speeds easily. If you run a multi-shed plant in Balitha or Sarigam where distances exceed 90 metres, or where cables run past heavy 440V machinery, fiber optic cabling is necessary between sheds. Fibre uses light pulses instead of electrical signals, making it immune to electrical noise from heavy plant motors.
7 Structured Cabling Mistakes Vapi Companies Should Avoid
Here are seven common cabling mistakes our team frequently fixes during site audits across Vapi GIDC and surrounding industrial areas.
- Laying Data Cables in the Same Tray as Heavy Power LinesTo save conduit costs, installers sometimes run Cat6 cables right next to main 3-phase power lines. Electromagnetic interference (EMI) from heavy machinery causes dropped data packets, slow file transfers on local servers, and random Tally disconnects. Always keep data cables at least 12 inches away from high-voltage wiring.
- Skipping the Patch Panel to Save MoneyRunning solid-core Cat6 cable directly from a wall outlet straight into a network switch switch ports seems cheaper initially. However, solid copper cables are stiff; plugging and unplugging them stresses the switch ports and breaks internal conductors. A patch panel terminates fixed wall wiring safely, using flexible patch cords for equipment connections.
- Ignoring Cable Length Limits (The 90-Metre Rule)Ethernet standards allow a maximum cable run of 90 metres from the patch panel to the wall outlet (plus 10 metres total for flexible patch cords). Exceeding 100 metres total length results in weak signal strength, packet loss, and constant network dropouts that no software settings can fix.

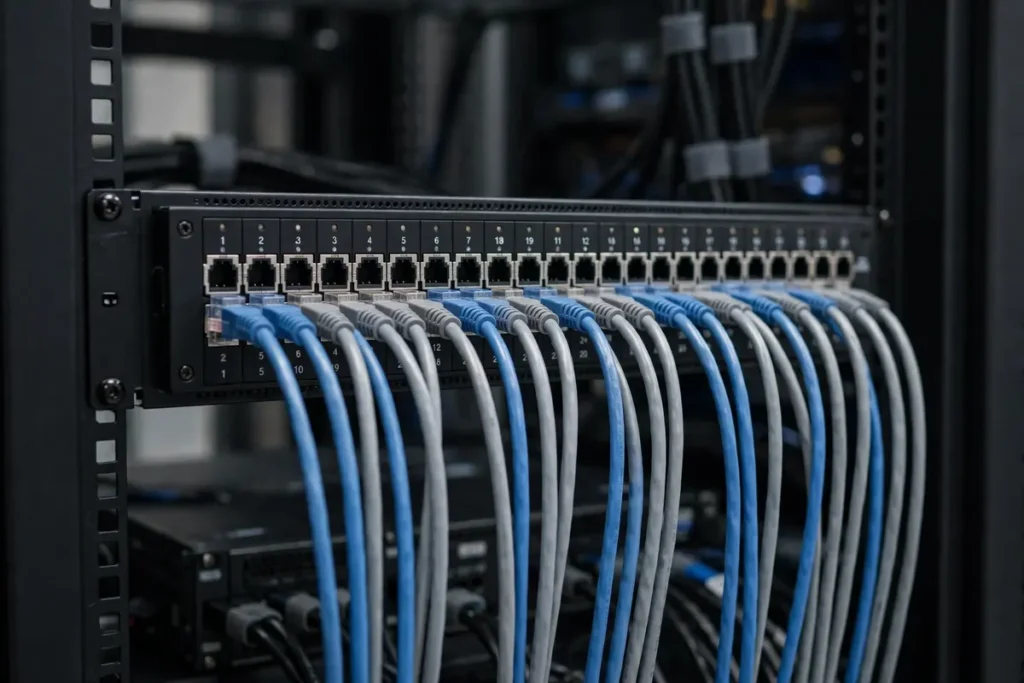

- Leaving Cable Runs Unlabelled at Both EndsAn unlabelled patch panel is a maintenance nightmare. Label every cable port at the wall faceplate and at the corresponding patch panel jack using a clear numbering system (e.g., RACK1-PORT12). When a machine loses connectivity, your internal IT person can isolate the port in two minutes instead of two hours.
- Exceeding Cable Bend Radii During PullingTightly bending Cat6 or Cat6A cables around sharp metal corners in factory roof trusses alters the internal twist rates of the copper pairs. This causes crosstalk between wire pairs, degrading Gigabit speeds down to 10Mbps without any visible damage on the outer jacket.

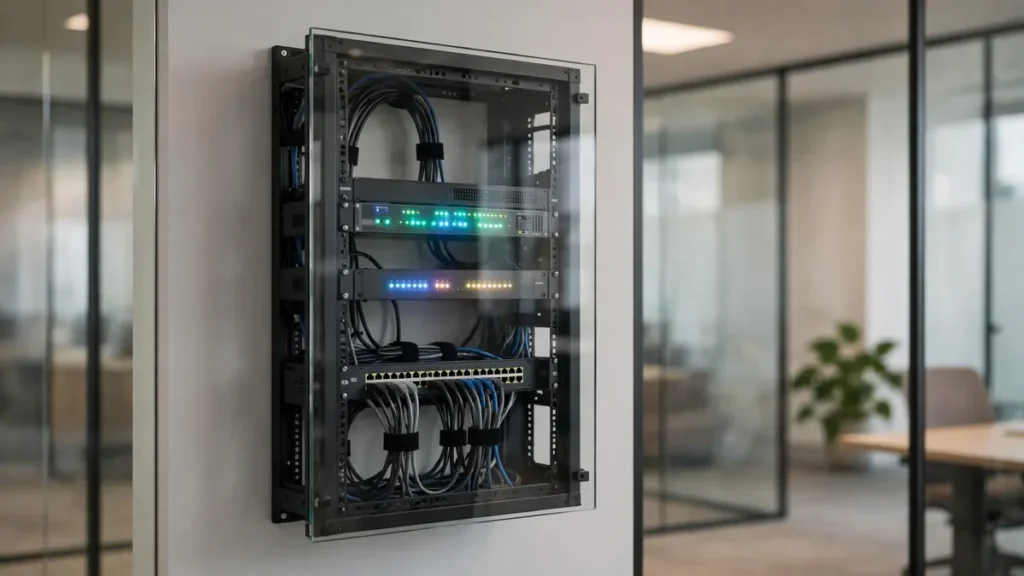

- Mounting Network Racks in Hot, Unventilated Storage RoomsPlacing your network switch, router, and patch panel inside a dark closet without ventilation leads to thermal throttling. Active switches and UPS units build up heat quickly, shortening hardware life. Install racks in temperature-monitored spaces or equip the rack with exhaust fans.
- Forgetting Future Growth When Sizing Network RacksBuying a small 6U rack that barely holds today’s 24-port switch leaves zero room when you add six new CCTV cameras or a biometric attendance machine next year. Always choose a rack size that leaves at least 30% empty space for future patch panels and network expansion.
Structured Cabling Checklist for Local Businesses
| Step / Component | Standard Practice | Field Check Rule |
| Cable Type | Cat6 for <90m; Fibre for Inter-shed | Insist on 100% pure copper (avoid CCA) |
| Pathway Isolation | Separate conduits for power and data | Maintain 12-inch gap minimum |

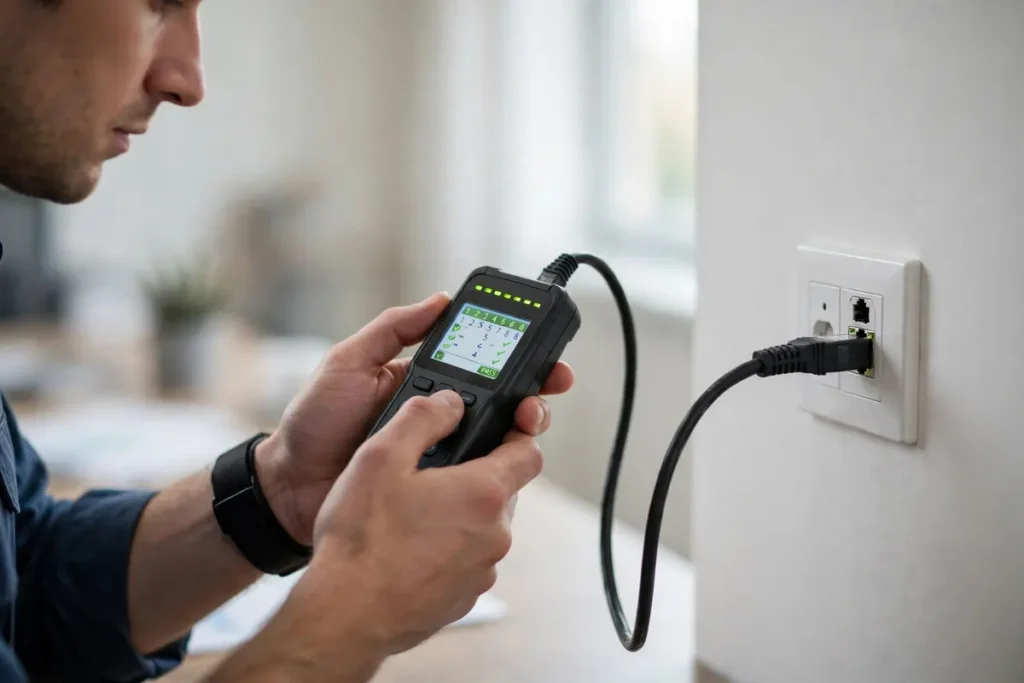

| Termination | T568B wiring standard across all ports | Verify using wiremap line testers |
| Rack Management | Cable organizers + numbered patch panels | Leave 30% spare rack unit (U) height |
Why Pure Copper Cables Matter for Industrial Plants
A common trap in budget cabling estimates is Copper Clad Aluminium (CCA) wire. CCA uses an aluminium core coated with a thin layer of copper. While it costs less, CCA breaks easily when pulled through long conduits, corrodes faster in Vapi’s humid climate, and fails when powering IP cameras using Power over Ethernet (PoE).
Always verify that your installer uses solid bare copper cables certified to BIS and international standards from reputed brands.
How A&T Technologies Delivers Clean IT Infrastructure
At A&T Technologies, we treat network cabling as the foundation of your entire office technology setup. We do not do quick patch jobs or leave messy bundles behind ceiling tiles.
Every structured cabling project in Vapi begins with a comprehensive site layout survey. We calculate run distances, map out pathway conduits, install sturdy network racks, and test every terminated point. Whether you are moving into a new corporate space in M-Cube or expanding a production shed in Vapi GIDC, we deliver clean, fully documented cabling layouts that keep your business running smoothly.
Frequently Asked Questions About Structured Cabling in Vapi
What is the difference between Cat6 and Cat6A cabling?
Cat6 supports data speeds up to 1Gbps at 100 metres and 10Gbps over shorter distances up to 55 metres. Cat6A features thicker insulation and tighter twists, allowing full 10Gbps speeds across the entire 100-metre length while offering superior protection against external electrical interference
What is CCA cable, and why should I avoid it?
CCA stands for Copper Clad Aluminium. It is a cheaper wire that substitutes aluminium for solid copper. CCA has higher electrical resistance, snaps easily under pulling tension, and often causes power drops on PoE devices like IP cameras and Wi-Fi access points.
How long does a structured cabling setup last?
A well-designed structured cabling system using pure copper Cat6 or Cat6A cables can easily last 10 to 15 years. Because physical cabling outlasts several generations of switches and computers, investing in quality wiring from the start prevents major office disruptions down the road.
Why do network cables need to be separated from electrical wires?
High-voltage power cables generate an electromagnetic field around them. When data cables run alongside power cables in the same tray, this field induces electrical noise (EMI) into the network wires, causing packet errors, slow network speeds, and dropped connections.
